6.831 User Interface Design & Implementation
Fall 2004
PS6: Toolkit Extension
Due 5 pm, Friday, November 5, 2004, by email
This assignment explores the following topics:
reusable widgets;
pluggable look-and-feel;
extending existing widgets by adding new appearance and new
behavior.

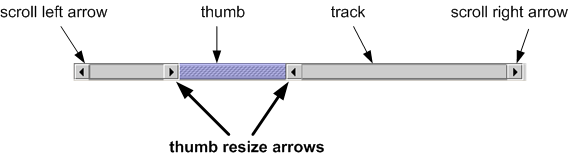

In this problem set, you will implement a double-headed scrollbar, which
allows the user to adjust not only the position of the scroll thumb but
also the width of the thumb:
Dragging the arrows at the ends of the scroll thumb resizes the
thumb. If the scrollbar is being used to scroll a view, the thumb
size maps to the fraction of the view currently visible, so resizing
the thumb effectively changes the magnification of the view:
More practically, a double-headed scrollbar can be used to specify a range query, such as a range of
dates or a range of prices.
Your double-headed scrollbar will be based on JScrollBar.
Since Swing uses pluggable look-and-feel, however, it will not be
enough to simply extend JScrollBar. JScrollBar knows almost
nothing about how to draw itself or handle its input. Those
functions are the responsibility of another object, the scrollbar's look-and-feeldelegate.Most of your work will involve
creating a look-and-feel delegate for your double-headed scrollbar,
which you will do by extending the standard Java look-and-feel, MetalScrollBarUI.
Provided Resources
We provide the following classes for this assignment:
Initially, the double-headed scrollbar looks and acts no different from
a plain JScrollBar. Your first task is to extend its
output. Add a button to each end of the scroll thumb, as shown in
the screenshot above. The buttons don't have to do anything yet, but
they should follow the thumb as the thumb moves. The new buttons
should be drawn on top of the thumb, flush against the ends of the
thumb.
Use the ImageDisplay class to test your double-headed scrollbar.
For simplicity, you only need to implement a horizontal scrollbar.
ImageDisplay only uses a horizontal double-headed scrollbar. Its
vertical scrollbar is just a JScrollBar.
Hints:
Add the new buttons in DoubleHeadedScrollbarUI, not in DoubleHeadedScrollbar.
You can use MetalScrollButton
for the new buttons, so that they look like
the buttons at the ends of the track. The constructor for this
class is poorly documented, but you can find an example (commented out)
in the skeleton of DoubleHeadedScrollbarUI. You can also skip
using MetalScrollButton and create your own component, if you prefer.
If a class isn't sufficiently documented, sometimes the only way
to extend it safely is to examine its source code. If you need
to, you can look at the source code for any class in
Swing by going to your Java installation directory and unpacking
src.zip. Relevant classes may be
javax.swing.plaf.metal.MetalScrollButton,
javax.swing.plaf.metal.MetalScrollBarUI,
and javax.swing.JScrollBar.
Problem 2: Input (40%)
Now add input to your double-headed scrollbar. Dragging either of
the thumb arrows should resize the thumb without moving the other end of the thumb.
The other end of the thumb may wiggle back and forth a bit due to
rounding errors, but it shouldn't move by more than a pixel. The
thumb arrow under the mouse should not make any sudden jumps when the
user starts
dragging it.
The thumb arrow buttons only need to respond to dragging, not clicking.
There are two boundary cases you need to deal with. The first
case is when the user tries to make the thumb too small. The
other boundary case is when the user tries to make the thumb too large,
filling the
entire scrollbar track. When the thumb fills the track,
the default MetalScrollBarUI makes the thumb disappear entirely.
Resolve these boundary cases as you see fit, following good principles
of direct manipulation design. In particular, your scrollbar
should not crash, should not enter an unusable state, and should be
reversible.
You can detect whether MetalScrollBarUI is making the thumb
invisible, because it calls setThumbBounds() with all zeroes. You
can prevent the thumb from disappearing by changing the zeroes to
something more sensible, such as the bounds of the track.
Questions (30%)
Answer the following questions in readme.txt.
Discuss the advantages and disadvantages of reusing
MetalScrollButton for your thumb-resizing controls. Consider both
usability
and implementation issues.
Run ImageDisplay using your platform look-and-feel, instead of
the default Java look-and-feel. (ImageDisplay.main() has some
commented-out code that does this.) What happens? How would
you have to fix your double-headed scrollbar to solve this problem?
If you followed our hint, then you used components to implement
the new thumb arrows. Suppose you used the stroke model to draw
the new arrows instead. Why would it be hard to override the base
scrollbar's behavior so you could provide input handling for the arrows?
What to Hand In
Package your completed assignment as a jar file, as described in PS0. Here's a checklist of things you
should
confirm before you hand in:
all your Java
source is included in your jar file (Javadoc documentation isn't
necessary)
the main class
of your jar file is ImageDisplay
all necessary third-party libraries are
included,
either inside your jar or as separate jars referenced by your jar's
classpath
any resources used by your code (notably the
sample image, Stephansdom.jpg) are
included
in the jar and referenced as resources
readme.txt is included, and it
answers the questions above and credits anybody you discussed the
assignment with
Before you submit your solution, put all the jar files you plan to
submit in an empty directory and make sure you can run it:
java
-jar yourfile.jar
Submit your solution by email
(with
all required jar files attached) to rcm+handin@graphics.csail.mit.edu
no later than 5:00 pm next Friday.
