6.831 User Interface Design & Implementation
Fall 2004
PS5: Rotation-Aware Layout
Due 5 pm, Friday, October 29, 2004, by email
This assignment explores the following topics:
implementing automatic layout protocols;
position, size, and orientation computation;
declarative vs. procedural specification
In this problem set, you will implement two novel layout managers for
rotatable RLabels. One layout manager arranges labels in a
circle. The other layout manager arranges labels horizontally,
tilting them if necessary to fit.
You have two weeks to complete
this problem set.
Provided Resources
We provide the following classes for this assignment:
CircleLayout: skeleton for the
circle layout manager
TiltLayout: skeleton for the
tilting
layout manager
LayoutTester: a class for testing
CircleLayout and TiltLayout

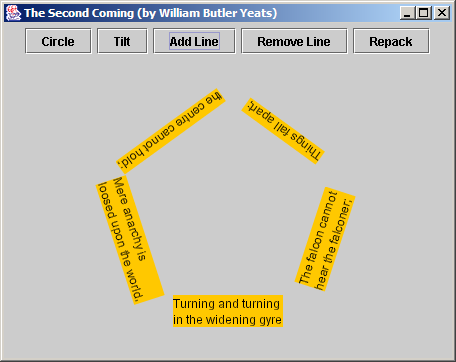

When CircleLayout is used as the layout manager for a container of
RLabels, it arranges the labels in a circle, oriented to be read from
outside the circle. This kind of layout would be useful for a GUI
designed to be projected on a round tabletop with multiple users
sitting around it. For example:
More precisely, CircleLayout should place the n labels in the container on the
sides of a regular polygon with n
sides. The polygon should be centered in the container, and its side
length should be the width of the widest label. The top edge of
each label's text should be centered on a side of the polygon.
The first label in the container should be horizontal, on the bottom of
the polygon, and successive labels should be positioned
counterclockwise around the polygon.
When n = 2, the "polygon" is simply a horizontal line segment centered
in the window, with the first label drawn below it and the second label
drawn upside down above it. When n = 1, the single label is
simply centered in the container.
For the purpose of this problem set, CircleLayout can ignore the actual
space available in the container. If the container is too small,
then the labels will simply be cropped.
CircleLayout's behavior is undefined if the container has anything but
RLabels in it. Don't worry about implementing preferred size or
minimum size for CircleLayout.
Hints:
Your layoutContainer() method must set three properties of each
label: its position, its size, and its orientation.
Remember that there's a difference between the size of the text
(the orange rectangles in the figures above) and the size of the RLabel
(returned by getSize() or getBounds()). Your code may have to
make each RLabel temporarily horizontal in order to find out the true
size of the text. If you find that distasteful, you may want to
add another method to RLabel that gives the text size without forcing
you to mutate the label.
It might help to think about the circle circumscribed around the
regular polygon.
Problem 2: TiltLayout (35%)

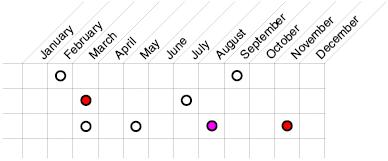

One motivation for TiltLayout is positioning the column headers of a
table so that they don't affect the width of the columns. By
tilting the column headers, we can push data items more closely
together:

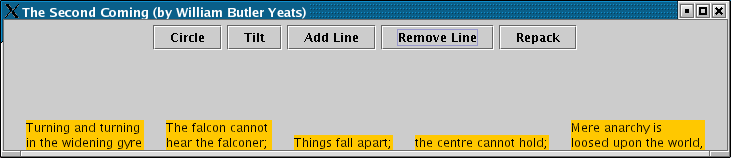

TiltLayout arranges RLabels in a row. As long as the labels fit
horizontally, it displays them horizontally at their preferred size,
flush against the bottom of the container. Any excess horizontal
space is divided evenly among the gaps (left margin, right margin, and
spaces between labels):

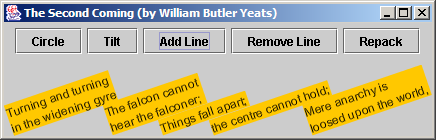

When the labels exceed the available horizontal space, however, the
labels are tilted upwards and packed tightly into the space:
All labels are tilted at the same angle. The skeleton
implementation of TiltLayout includes a method
getTiltAngle() that computes a suitable approximation for the tilt
angle.
As the available space shrinks, the tilt angle increases until the
labels become completely vertical, at which point the container starts
cropping from the right:
Don't worry about implementing preferred size or minimum size for
TiltLayout.
Questions (30%)
Answer the following questions in readme.txt.
Propose two other ways that CircleLayout might behave when
the container isn't large enough to display its preferred layout, and
discuss their advantages and disadvantages.
TiltLayout makes an implicit assumption about the shape of the
components it's arranging -- an assumption that makes sense for
most RLabels but wouldn't necessarily be true for arbitrary
components. What
is it?
The provided implementation of getTiltAngle() makes another
assumption about the RLabels it is laying out. Demonstrate a case where
getTiltAngle() computes the wrong tilt angle.
Write a declarative specification for TiltLayout -- i.e., a set
of constraint equations that relate the x coordinates, tilt angle, widths,
and heights of the components. Don't worry about the horizontal
or vertical cases; just the tilted case.
What to Hand In
Package your completed assignment as a jar file, as described in PS0. Here's a checklist of things you
should
confirm before you hand in:
all your Java
source is included in your jar file (Javadoc documentation isn't
necessary)
the main class
of your jar file is LayoutTester
all necessary third-party libraries are
included,
either inside your jar or as separate jars referenced by your jar's
classpath
any resources used by your code are included
in the jar and referenced as resources
readme.txt is included, and it
answers the questions above and credits anybody you discussed the
assignment with
Before you submit your solution, put all the jar files you plan to
submit in an empty directory and make sure you can run it:
java
-jar yourfile.jar
Submit your solution by email
(with
all required jar files attached) to rcm+handin@graphics.csail.mit.edu
no later than 5:00 pm next Friday.
