6.831 User Interface Design & Implementation
Fall 2004
PS2: Output Models
Due 5 pm, Friday, October 1, 2004, by email
This assignment explores the following topics related to GUI output:
the component model (also called retained-object model);
the stroke model (also called vector graphics);
the pixel model (also called raster graphics);
handling events sent from a model to a view.
In this problem set, you will implement a view that displays
the pieces of a checkers game. You'll implement the view three
different ways, using component, stroke, and pixel techniques. In
this problem set, you'll only be concerned with output. In the
next problem set, you'll add input handling to your views, so that the
user can move the mouse over checkers and drag them around.
Provided Resources
We provide you with a lot of existing code for this assignment.
You can get it all at once here:
ps2-provided.jar: a jar file
containing source code, class files, and Javadoc documentation.

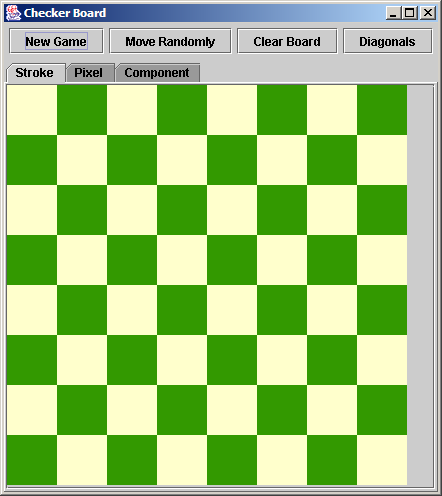

You can run ps2-provided.jar (java
-jar ps2-provided.jar) to see the BoardViewTester window pop up,
displaying a checkerboard:
The board model actually has pieces on it, but you won't see them until
you've implemented the pieces display.
You can unpack ps2-provided.jar (jar
xf ps2-provided.jar) to find the source code and Javadoc
documentation. The documentation is also available on the web:
Feel free to change these classes as you see fit, or even replace them
entirely.
Problem 1: Stroke Model
Fill in the skeleton of StrokeBoardView so that it displays all the
checkers on the board using strokes drawn on Graphics. At a
minimum, red checkers should be red circles and black checkers should
be black circles. Feel free to make your checkers look better, if
you like, but you may want to defer this until you've done all the
problems.
Your StrokeBoardView must update correctly when the board
changes. You can test this in BoardViewTester by clicking on the
buttons, which produce various board configurations.
If you need help understanding the Swing painting model, you may want
to look at Sun's article Painting
in AWT and Swing. Particularly useful is the summary of Swing
painting guidelines at the end of the article.
Problem 2: Pixel Model
Fill in the skeleton of PixelBoardView so that it displays checkers
using pixel images. Two pictures are provided for you in the jar
file (red.gif and white.gif, found in the ui directory), but you can
replace them with different pictures if you prefer. These image
files should be loaded as resources,
not as files.
Like StrokeBoardView, your PixelBoardView must update correctly when
the board changes.
Images in Java can sometimes be a pain, because Java is designed to
allow loading images lazily from a network connection. You can
avoid these headaches by using javax.swing.ImageIcon to load the image
as a Swing icon, and then call getImage() to get an Image object that
you can actually draw with.
Problem 3: Component Model
Fill in the skeleton of ComponentBoardView so that each checker is
represented by its own JComponent object. The skeleton code
includes an inner class CheckerComponent that represents a single
checker. You'll have to fill in code to make this component draw
itself, which it can do with either strokes or a pixel image.
You'll also have to write code in ComponentBoardView for creating and
managing CheckerComponent objects.
Like the other views, your ComponentBoardView must update correctly
when the board changes. Warning: Swing has a bug (which Sun
stubbornly refuses to fix) such that a container with no layout manager
fails to repaint when a component is removed from it. When
you remove a checker component, you'll have to call repaint manually.
Questions
Answer the following questions in readme.txt.
When a checker moves in ComponentBoardView, which checkers are
repainted by your implementation? (Don't guess -- instrument your
code to find out.) Why?
When a checker moves in StrokeBoardView, which checkers are
repainted by your implementation? Why? Can you do better,
and if so how?
Try a 100x100 checkerboard, by passing 100 as a command-line
argument to BoardViewTester. How many checkers are requested from
the model by each of your views when the view first appears?
Why? Can you do better, and if so how?
For each of the following situations, which output models would
be appropriate and which would not? Why?
The checkerboard has a million squares on each side, and its
model is split up among many servers around the Internet.
The checkerboard is standard 8x8, but might be displayed on a
variety of screen sizes: a desktop, a handheld, a watch, or a wall.
The game is chess instead of checkers.
What to Hand In
Package your completed assignment as a jar file, as described in PS0. Here's a checklist of things you
should
confirm before you hand in:
all your Java
source is included in your jar file (Javadoc documentation isn't
necessary)
the main class
of your jar file is BoardViewTester
all necessary third-party libraries are
included,
either inside your jar or as separate jars referenced by your jar's
classpath
all images used by your code are included
in the jar and referenced as resources
readme.txt is included, and it
answers the questions above and credits anybody you discussed the
assignment with
Before you submit your solution, put all the jar files you plan to
submit in an empty directory and make sure you can run it:
java
-jar yourfile.jar
Submit your solution by email
(with
all required jar files attached) to rcm+handin@graphics.csail.mit.edu
no later than 5:00 pm next Friday.
